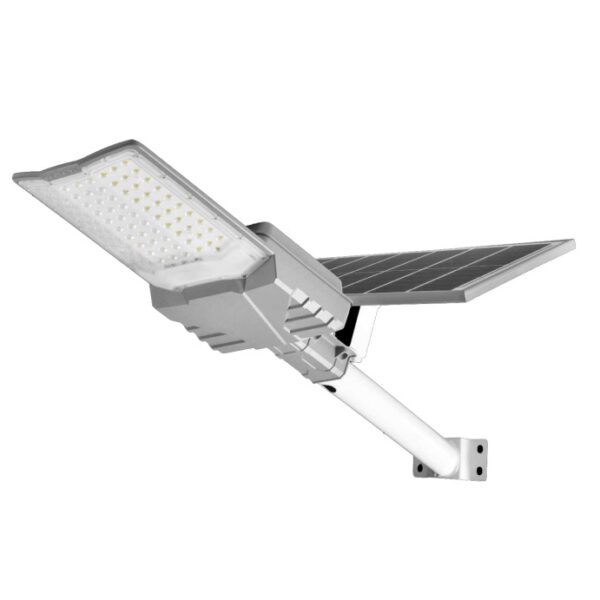

Experience reliable, off-grid illumination with the 200W Split Solar LED Street Light，the separate solar panel captures maximum sunlight throughout the day, charging a long-life battery that powers the light automatically from dusk to dawn.

Its intelligent design allows for flexible installation, ensuring optimal sun exposure for the panel and precise light placement for the lamp head. For added convenience, the included remote control lets you easily adjust brightness, set timers, and switch lighting modes from a distance—no need to climb the pole or manually operate the fixture.

Built for demanding outdoor environments, the fixture features a rugged, weather-resistant housing that withstands rain, heat, and dust. Ideal for streets, highways, residential communities, industrial zones, and remote areas, the 100W Split Solar LED Street Light offers a dependable, cost-effective, and eco-friendly alternative to traditional grid-powered lighting.

Product Features

Rugged Aluminum Build: Anti-corrosion and anti-typhoon design ensures long-term outdoor reliability.
High-Efficiency Mono Panel: >22% conversion efficiency for faster charging.
Ultra-Long Battery Life: Over 3,000 charge/discharge cycles for extended durability.
Easy & Cost-Effective: One-step installation with completely FREE maintenance.
Smart BMS Protection: Advanced battery management system for safe and stable operation.
FREE Lighting Simulation: Professional DIAlux simulation service provided for your projects.
Customization Ready: Comprehensive OEM & ODM solar solution services.

Technical Details

Model No.	JXL-AIT01-200W
Flux Luminous	150lm/w
Super bright LED Chip	92pcs SMD5054
LED Lifetime	>100,000hours
MONO Solar Panel	6V/50W,Efficiency>22%
Solar Panel Lifetime	>25 years
Solar Panel Size	445*700mm
Core Technology(MPPT)	MCU 4.0 Intelligent Control
NEW LiFePO4 Battery	3.2V/30Ah(96Wh)
Battery Life time	8-10 years(Life cycle>3,000 times)
Light Distribution	320°
Color Temperature	6000K,Ra>70+
IP / IK Class	IP65 / IK08
Remote control	Yes
Sensor	Light sensor
Control Model	On/off switch
Working Model	Auto-adjusting mode
Charging Time	6-8 Hrs under strong sunshine
Working Time	12 hours/night
Lighting Time in Rainy Day	2-3 Days
Lamp Size	55023085mm
Body Materials	Aluminium + PC
Recommended Height	4-6 meters
Recommended Pole Spacing	20-25 meters
Working Temperature	-25℃～+65℃
Installation Method	￠60mm
Warranty	2 years
Accessories	Bracket,screws
Certificate	ISO9001,CE,RoHs,IP65 IES,MSDS

Product Description

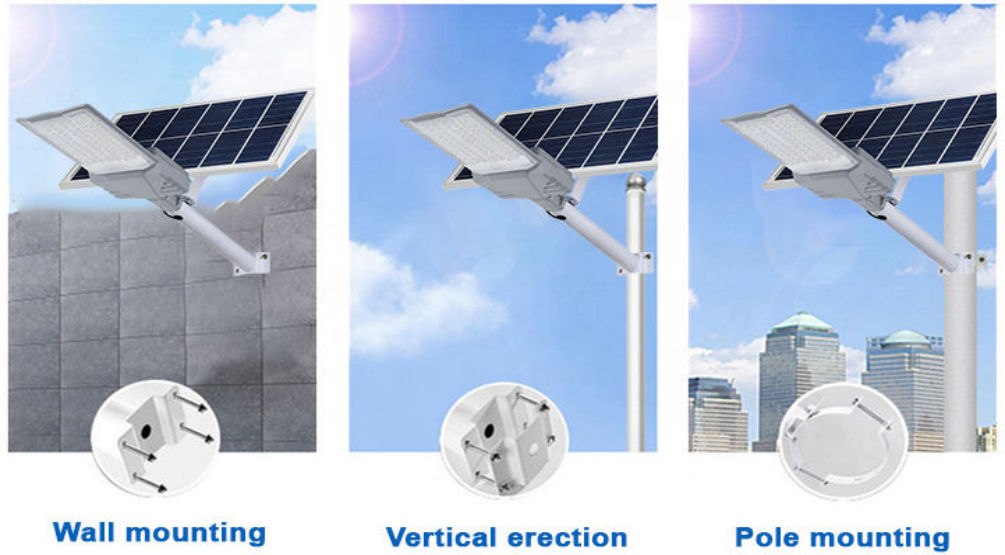

Multiple installation Modes

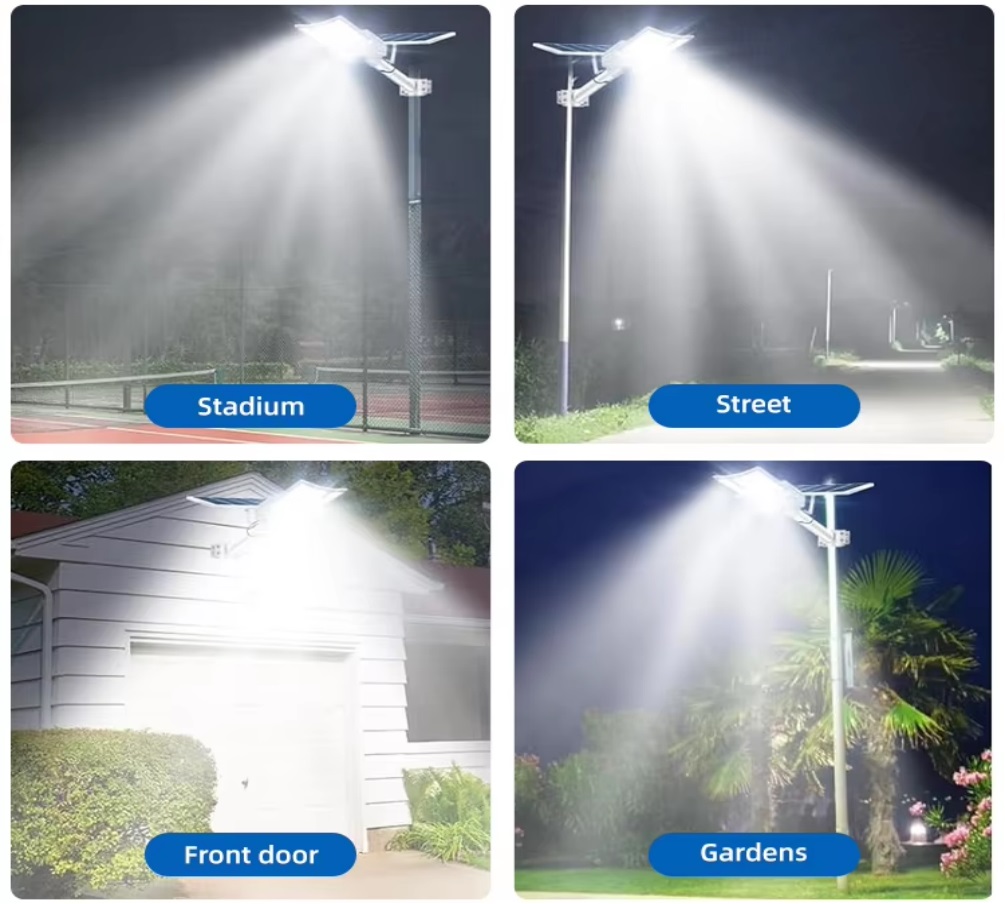

Project Pictures

Features and Benefits

Mono Solar Panel & Large Capacity

The 200W split solar street light adopts a 6V/50W monocrystalline silicon solar panel with a high photoelectric conversion efficiency of over 22%. It features a brand new 3.2V/30Ah (96Wh) LiFePO4 battery with over 3,000 cycles of charge and discharge. It can be fully charged in 6-8 hours under strong sunshine, providing a long working time of 12 hours per night and lasting 2-3 days in rainy conditions.

Two Modes

– Automatic mode: The 100W solar street light automatically turns on at dusk and turns off at dawn.

– Remote control mode: M1, M2, M3, EU lighting modes can be changed by the remote controller.

High Brightness and Energy Saving

Uses 92pcs high brightness SMD5054 LED chips, achieving a flux luminous of 150lm/w with low power consumption and high brightness. It also saves installation, maintenance, and electricity bill costs.

Easy Installation & Durable Design

The solar street light comes with a 90° adjustable arm and can be easily mounted on a pole (pole diameter 60mm, recommended mounted height 4-5m). It features an aluminum + PC body with IP65 waterproof and IK08 protection grade, ensuring rainproof, lightning protection, and dustproof performance. It is anti-corrosion and anti-typhoon, requiring free maintenance.

IP65 Waterproof & Aluminum Body

Solar street lights IP65 waterproof grade, rainproof, lightning protection and dustproof, with aluminum body, the solar street light can work up to 5 years.
