80w All In One Solar Street Light

Model: JXL-ISL01-80W

Luminous Flux: >8000LM

LED Chip: 96pcs SMD 5050 (High Efficiency)

Shingled Solar Panel: 18V/80WP

Charge Controller: 12V(MPPT Technology)

LiFePO4 Lithium Battery: 12.8V/36,000mAh

Battery Life time: 8-10 years(Lifecycle>2,500 times)

LED Lifetime: >100,000hours

Light Distribution: TYPE II & TYPE III

Color Temperature: Ra>70+, 6000K(It can be customized)

Color Rendering Index: Ra>70

IP Rated: IP 65

PIR Sensor: 360°, sensor distance>14 meters

Charging Time: 6-8 Hrs under strong sunshine

Cloudy & Rainy days: 3-5 Days

Body Materials: Die-Casting Aluminium

Product Size: 1130*400*32mm

Recommended Height: 7-8 meters

Pole Diameter: Ø60-70mm

Recommended Pole Spacing: 25-30M

Discharge Temperature: -25°C – +65°C

Warranty: 3 years

Certificate: ISO, IEC, CE, RoHs, IP65, IES, MSDS

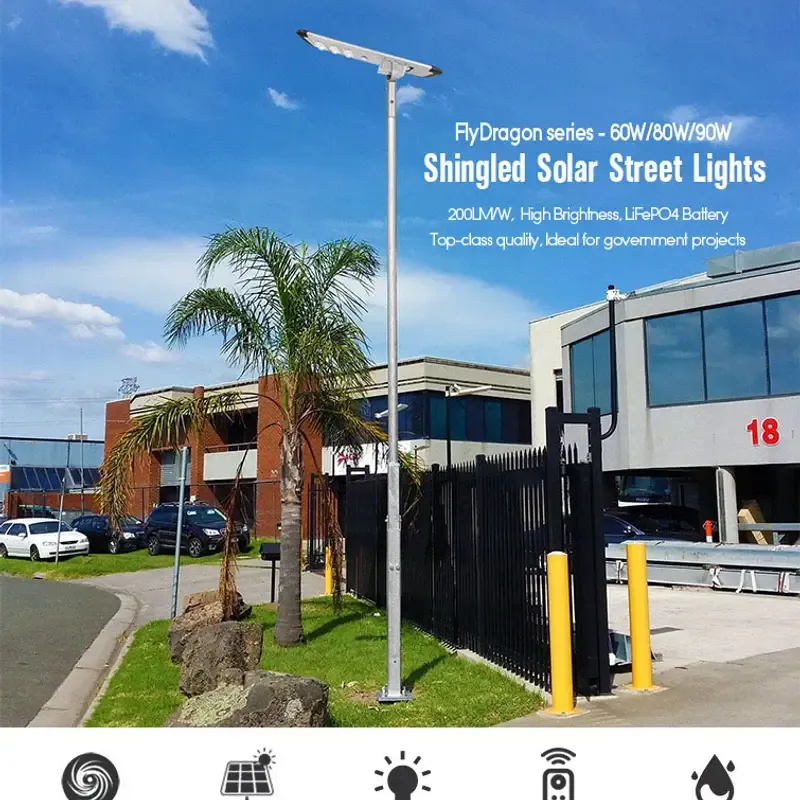

This 80W solar street lights, dusk to dawn street solar lights with PIR motion sensor and light sensor, it can produce over 8000 high lumens of brightness, ideal for illuminating highways, roadways, streets, parking lot and security areas, etc. The main specifications of the 80w solar street lights:

Solar panel: 18V/80WP shingled mono solar panel
Lithium battery: 12.8V 36AH
Recommended install height: 7-8M
LED chip: SMD 5050
Luminous flux: 6000-6500LM
Work time: 3-5 rainy days
Size: 1130*400*32MM
Warranty: 3 years

Product Specification:

Model	JXL-ISL01-80W
Luminous Flux	>8000LM
LED Chip	96pcs SMD 5050 (High Efficiency)
Shingled Solar Panel	18V/80WP
Charge Controller	12V(MPPT Technology)
LiFePO4 Lithium Battery	12.8V/36,000mAh
Battery Life time	8-10 years(Lifecycle>2,500 times)
LED Lifetime	>100,000hours

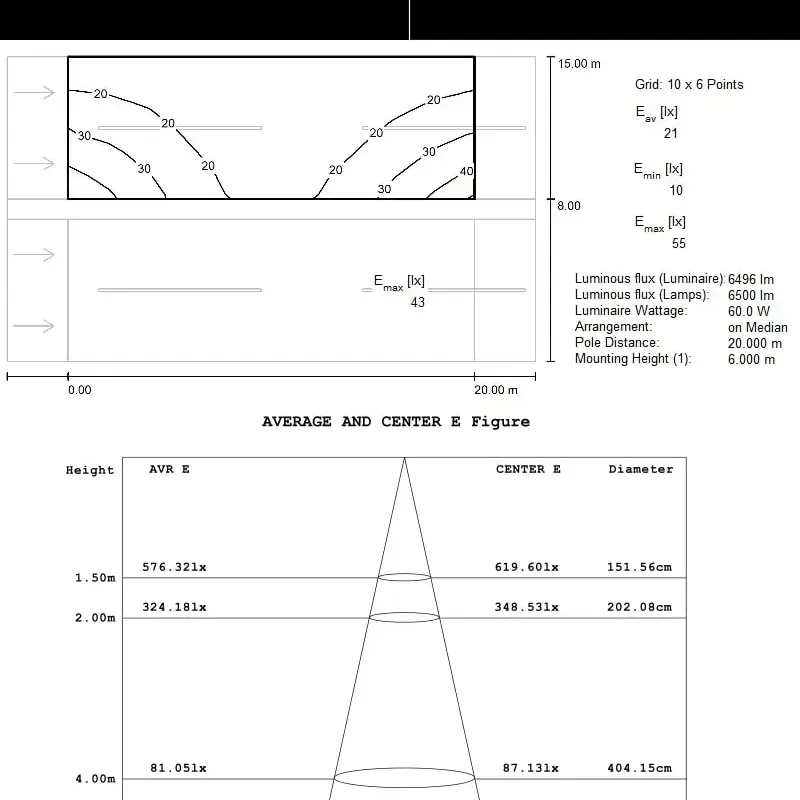

Light Distribution	TYPE II & TYPE III
Color Temperature	Ra>70+,6000K(It can be customized)
Color Rendering Index	Ra>70
IP Rated	IP 65
PIR Sensor	360º, sensor distance>14 meters
Charging Time	6-8 Hrs under strong sunshine
Cloudy & Rainy days	3-5 Days
Body Materials	Die-Casting Aluminium
Product Size	113040032mm
Net Weight	20Kg
Recommended Height	7-8 meters
Pole Diameter	Ø60-70mm
Recommended Pole Spacing	25-30M
Discharge Temparature	-25℃ – +65℃
Warranty	3 years
Certificate	ISO,IEC,CE,RoHs,IP65,IES,MSDS

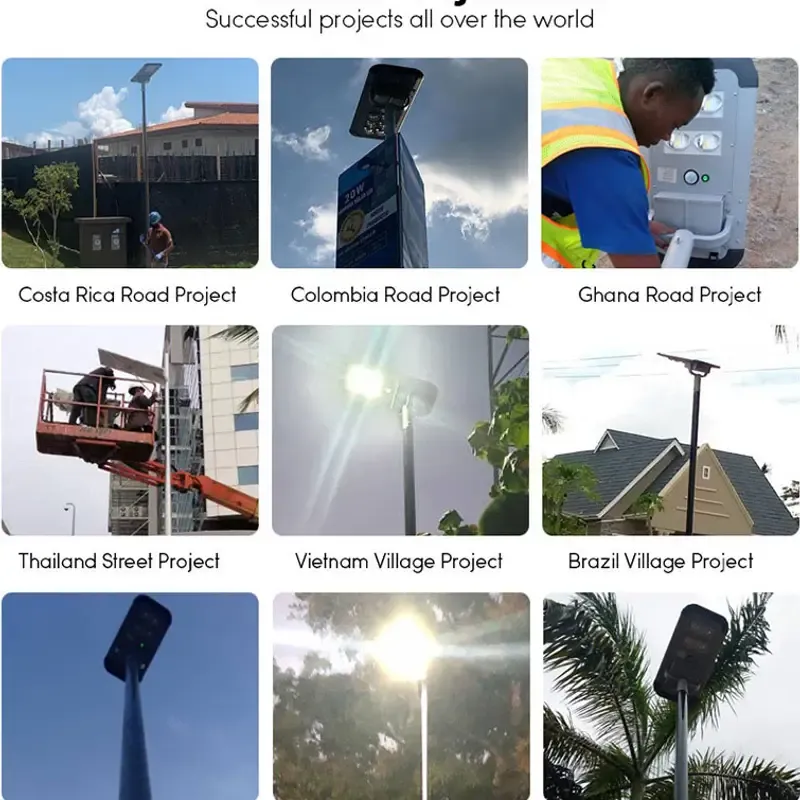

Applications	Street lighting, area lighting, security lighting, parking lot areas, off-grid road, etc.

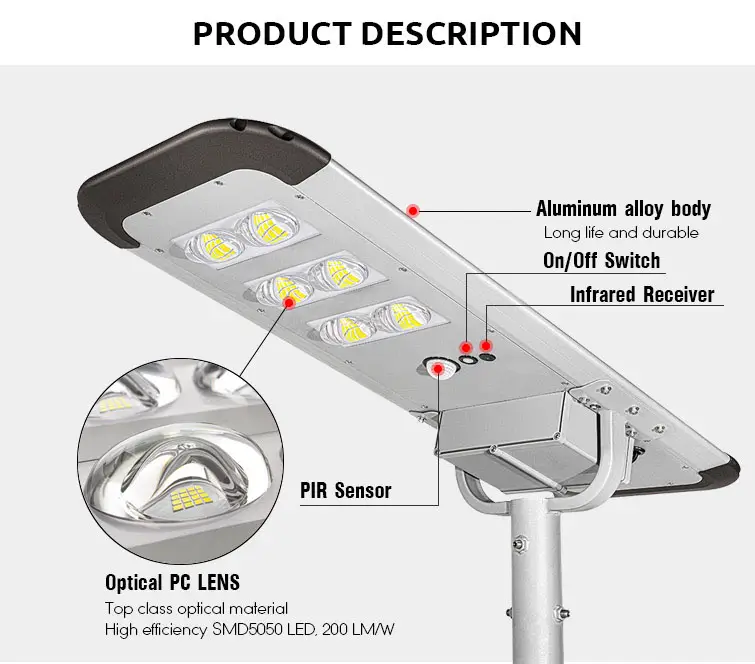

Product Details:

80W 8000 Lumens Solar Street Lights

EASY TO OPERATE & SAVE MONEY
The 80w solar street lamp is easy to install, and it does not require additional hard-wire links, and can be easily mounted on a pole. The diameter of the pole ranges from 60mm to 70mm. And it saving installation costs and maintenance costs, electricity bills as well.

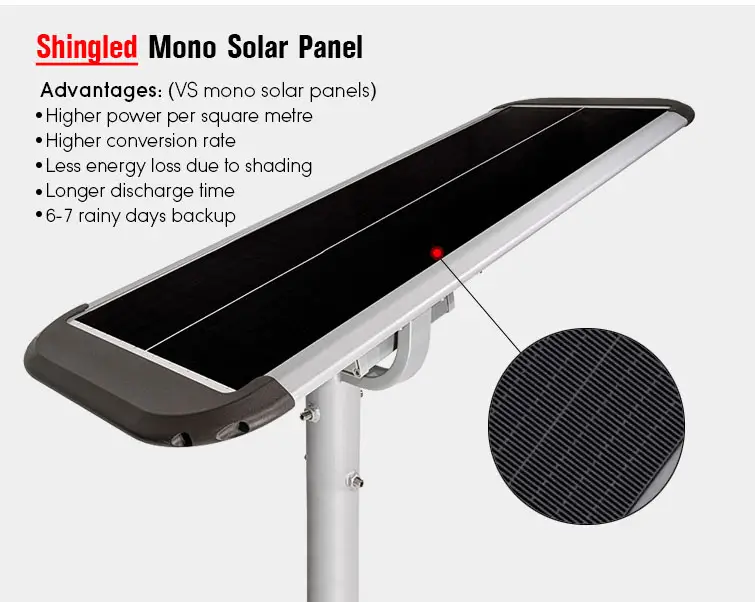

HIGH EFFICIENCY & LONG LIFETIME MONO SOLAR PANELS

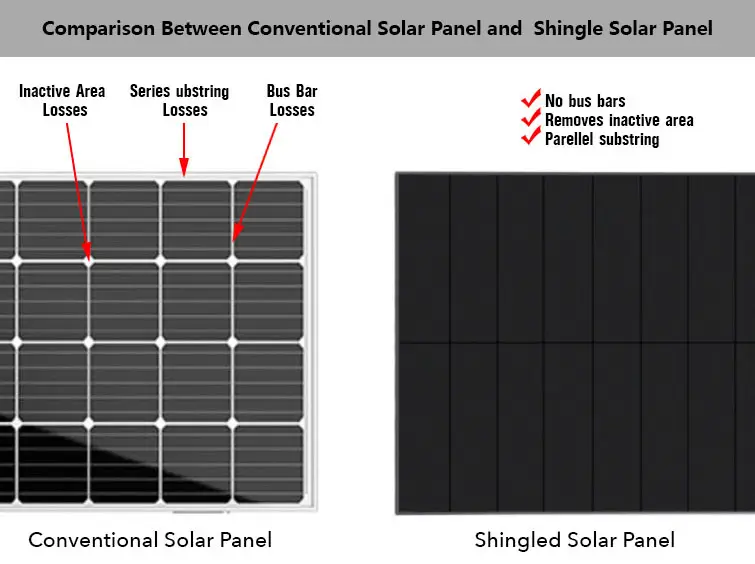

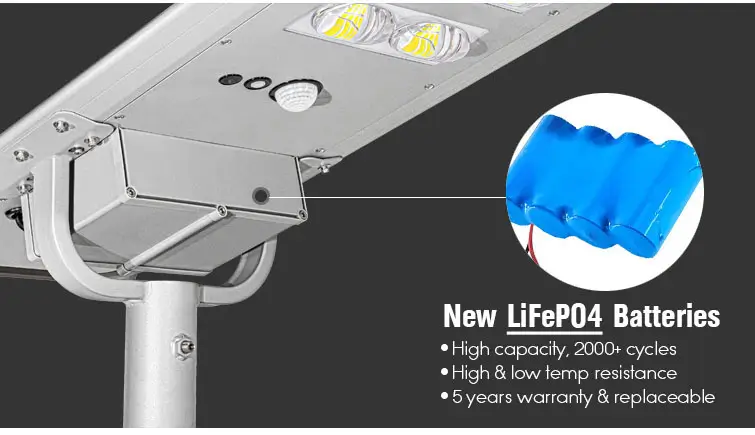

Outdoor solar street light use shingled monocrystalline silicon photovoltaic panels with the high photoelectric conversion efficiency up to 30%. Thw 60w solar light outdoor built-in 36000mAh large capacity lithium battery, to be fully charged in only 6-8 hours, providing a long working time about 6-7 rainy days.

BUILT-IN MOTION SENSOR AND LIGHT SENSOR

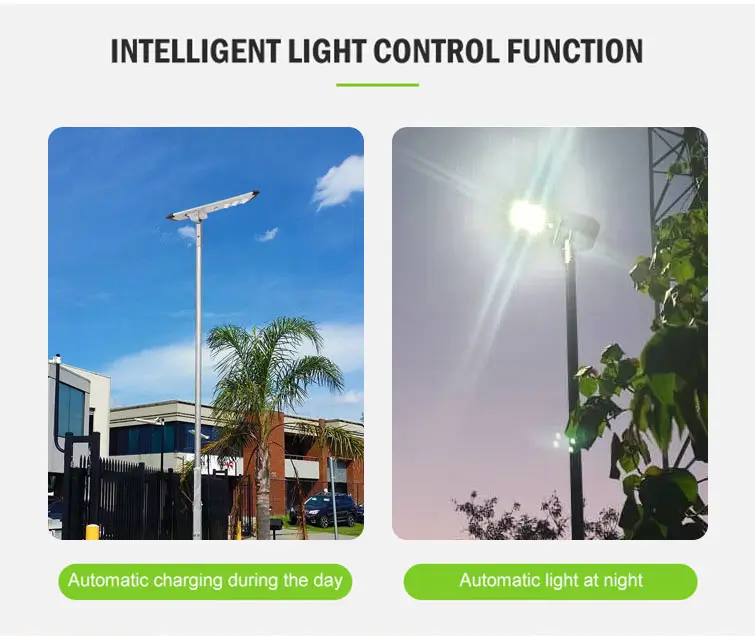

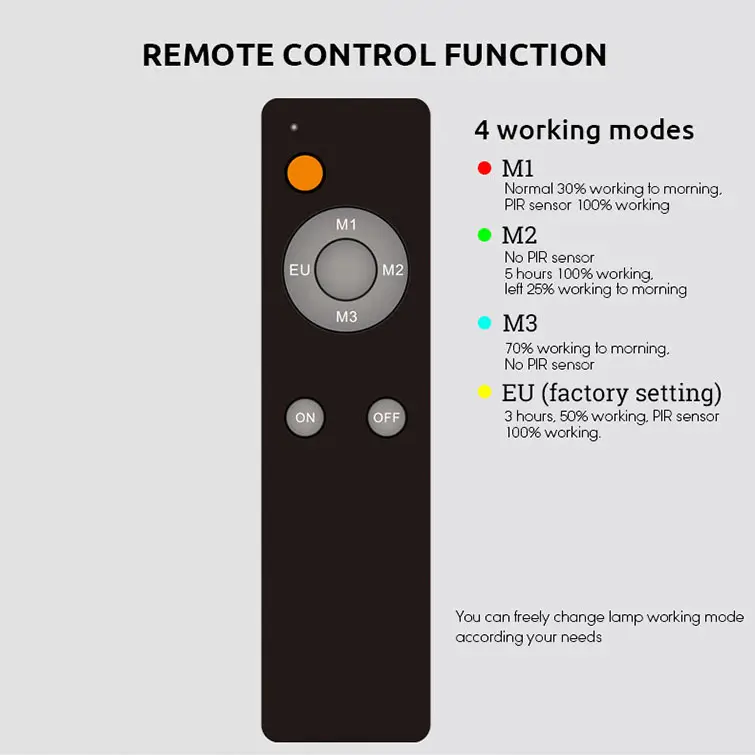

Solar street lights come on at dusk, automatically turn off and charge at dawn. Solar motion sensor light turn 100% brightness mode in 2 seconds when motion is detected. It reverts back to 30% energy saving mode again if people out of the detected area.

IP65 WATERPROOF
Solar street lights IP65 waterproof grade, rainproof, lightning protection and dustproof, ABS plastic lamp body and new inner design housing with individual sealed boxes for batteries, controller and outer sealed rubber ring protect from water leaking.

Three years Warranty
Solar street lamp efficiently with a lifespan of 50,000+ hours eliminates the need to frequently replace your fixture. We offer a 3-year warranty to all customers. If there are quality problems with solar lights motion outdoor, please contact us.
